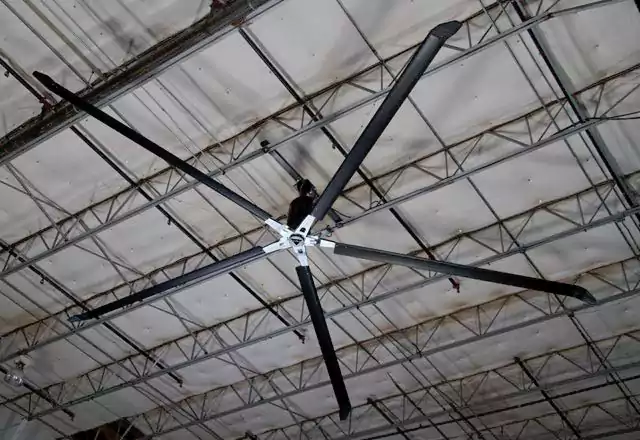

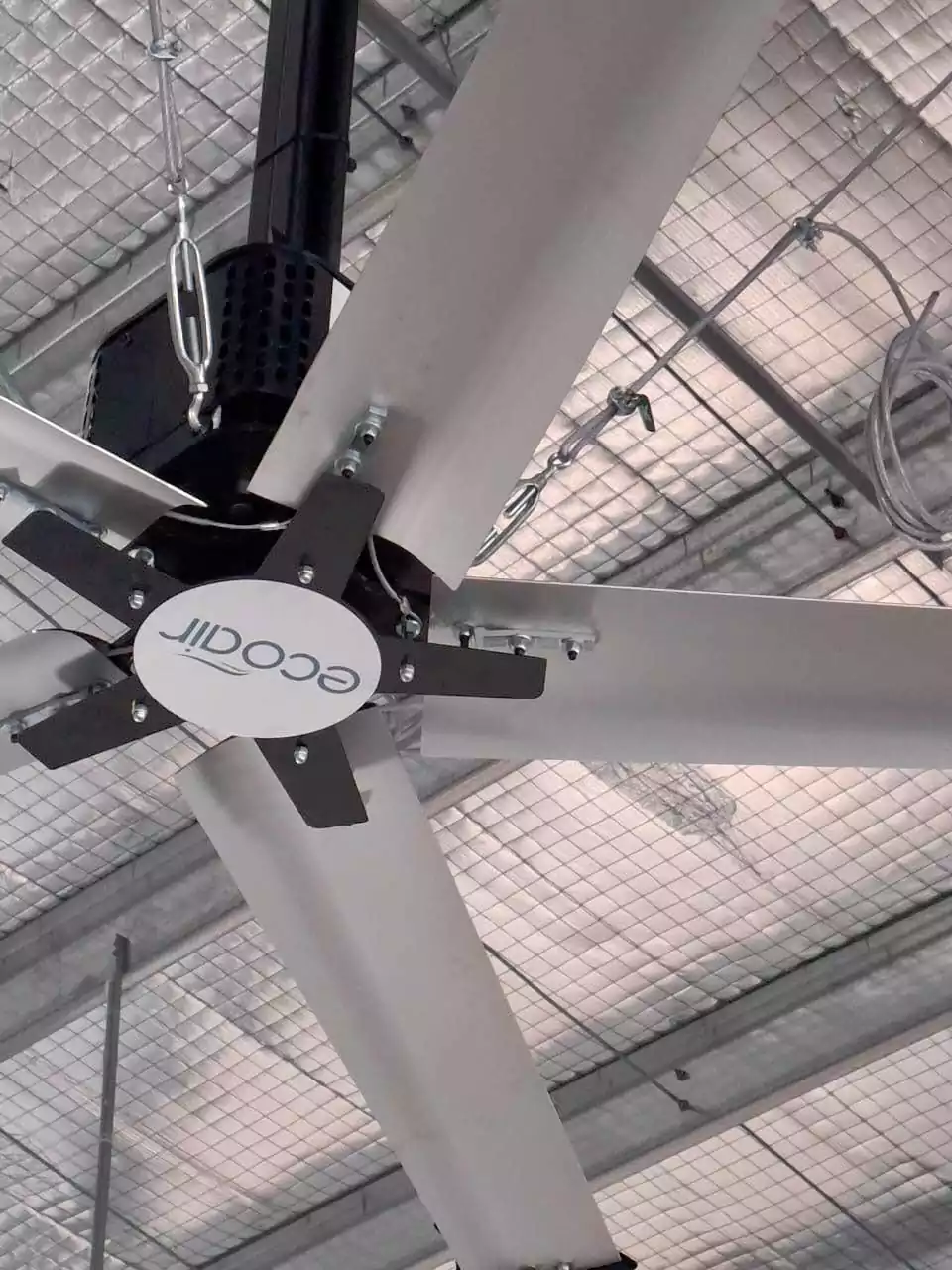

High Volume Low Speed fans are High Volume Low Speed Fans which covers larger areas ( @ 16000 Sq.ft. ) and consumes less power i.e. up to 1.5 KW only. These fans are usually available from 8 ft dia to 24 ft dia and are very useful for covering large areas at one goal

• High performance industrial fans
• Single fan replaces multiple wall mounted fans
• Distributes air up to 15,000 sqft, corner to corner, outstanding coverage without draft.
• Running Cost reduction of upto 80% and payback in 6 months.
• Variable speed controller to set and control airflow. Reserve Operation options. Earn LEED creduts for sustainable design.
• Flexibility on shop floor for line layout and movement

• Extremely high level of primary safety for all components. 35mm motor Dia / M14 bolts for structer and chasis / Nylock nuts and lactite for all fasteners / steel EN 10025 - 90 for structure & chasis / GI wire Ropes with additional PVC Coating etc
• Secondary anti - fall safety systems provided for all major Components
  • Structure - Secondary Wire rope to lock to building structure.
  • Blades - Embedded Wire Ropes In Blade
  • Hub - Special 2 Brackets For anti-fall.

• Aerofoil blade design with blade angle of 27 deg for optimum air Flow % Thrust.
• Tapered fan blades for uniform Air Distribution.
• Nord high efficiency motor and gear box for low running costs.

• Shop Floors
• Assembly areas
• Testing facilities
• Moulding industries
• Offices
• Industrial Canteens
• Commercials Malls
• Shops
• Restaurants/Banquet Halls/Marriage Halls
• Temples/Mosques/Churches
• Government establishments
• Schools Colleges
• Auditoriums
• Hospitals.
